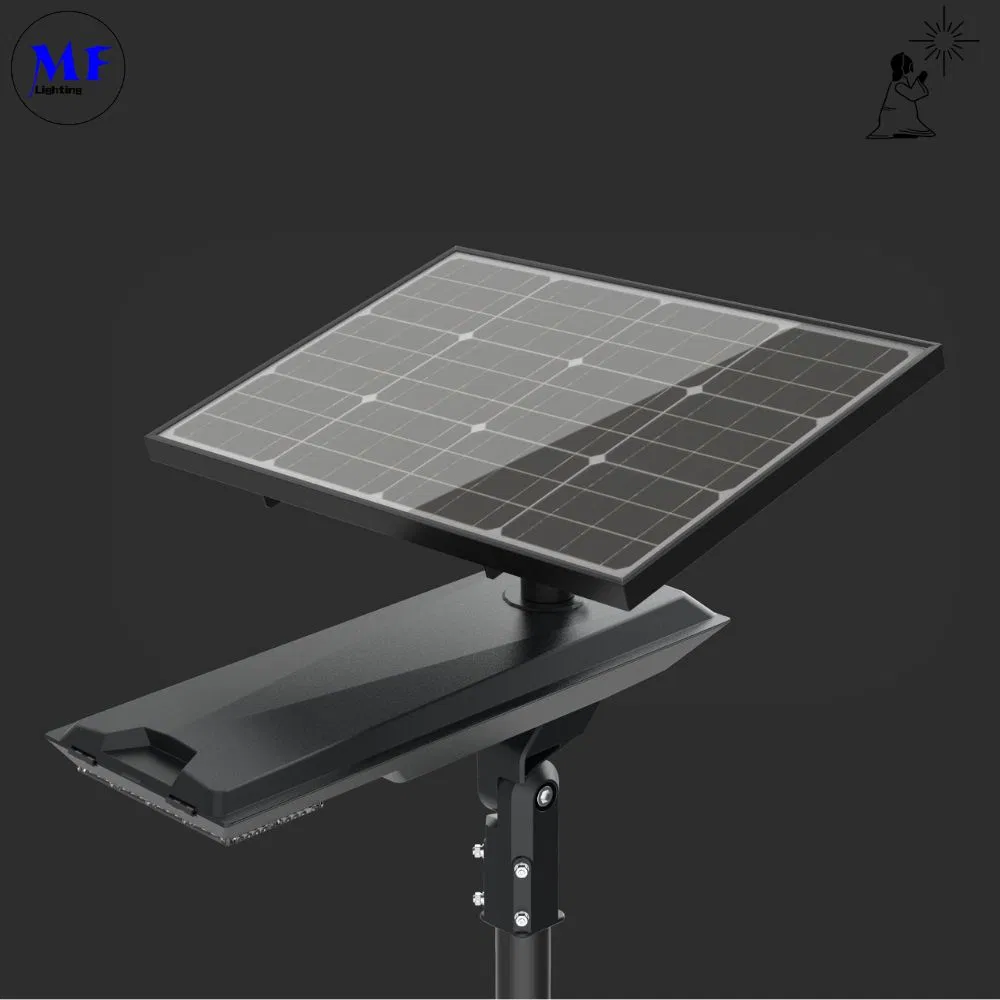

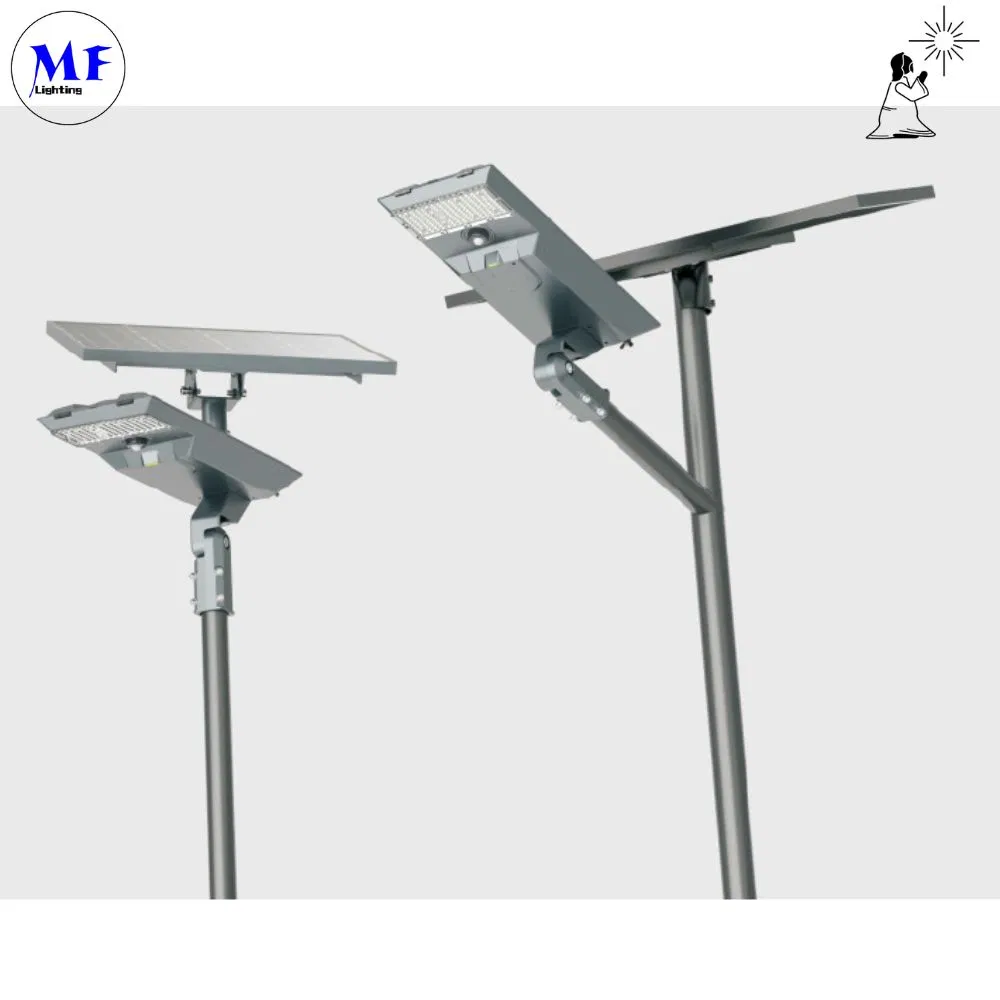

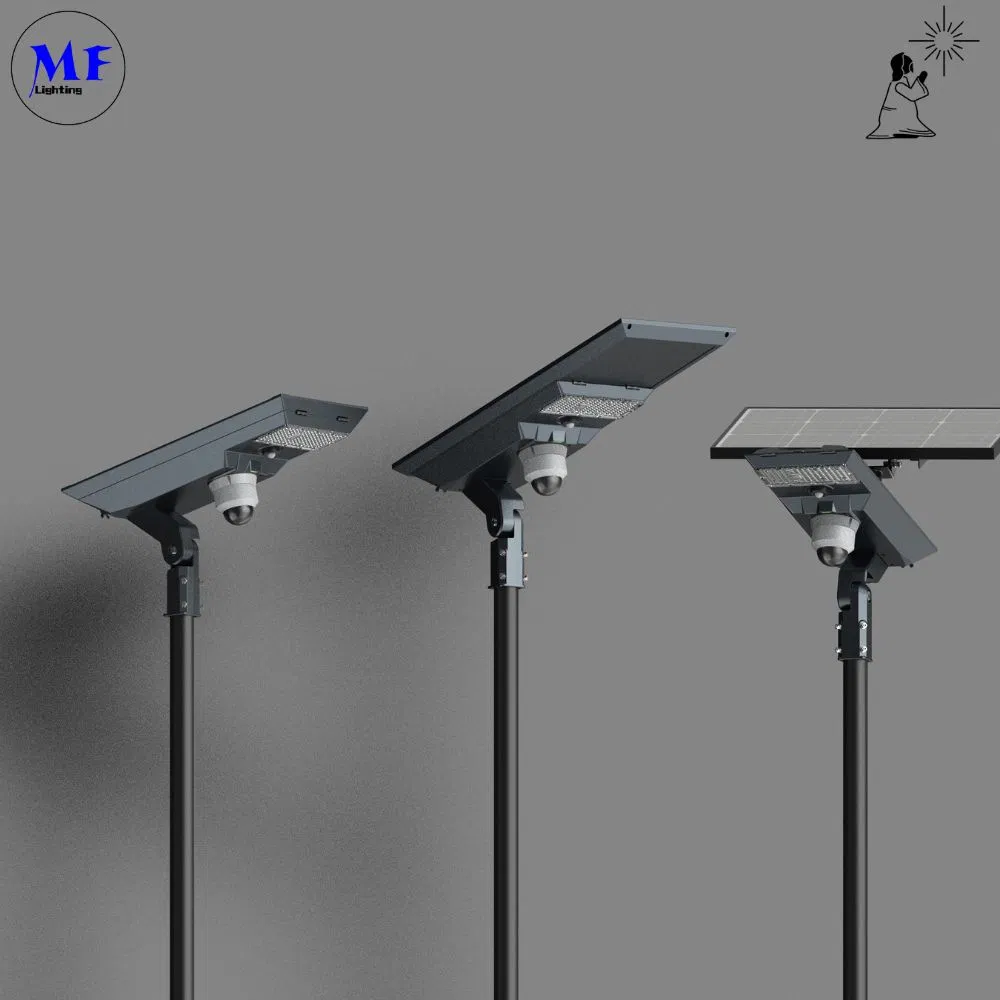

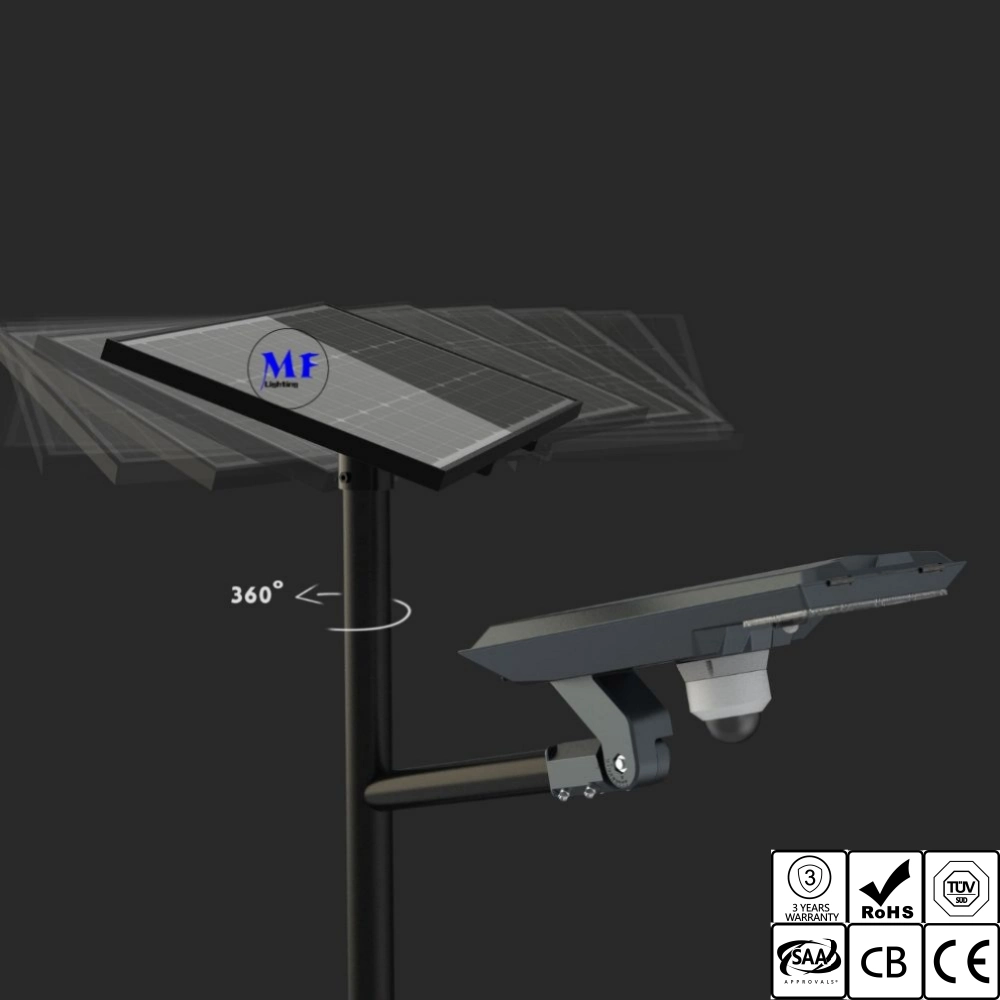

IP66 Waterproof Security 20-120W LED Solar Street Light with Motion Sensor Camera
| Parameter | Warm White (WW) | Nature White (NW) | Cool White (CW) |
|---|---|---|---|
| Color Temperature | 4000±300K | 5000±300K | 5700±300K |
| CRI | ≥70 | ||

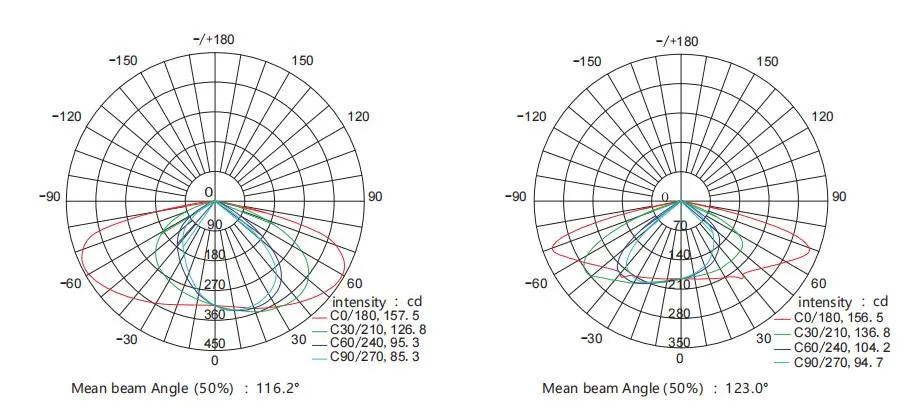

| Beam Angle | 155°/70° (TM3) or 155°/75° (TM2) | ||
| Working Temp | -10°C ~ +50°C | ||
| Storage Temp | -20°C ~ +40°C | ||
| Control Ways | PIR / Microwave / Time / Remote | ||
| LED Brand | Lumileds / CREE | Power per LED | 0.3 W |
|---|---|---|---|
| LED Size | 3.0 x 3.0 x 0.52 mm | Efficiency | 180-190 lm/W |

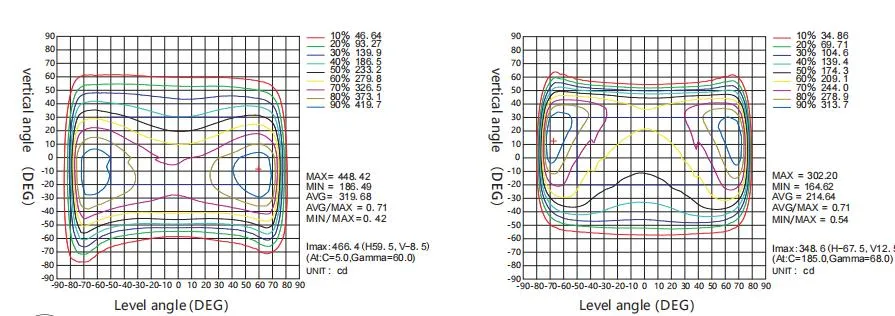

LUX LEVEL CHART
The light features an IP66 waterproof rating, ensuring it is fully protected against dust and heavy water jets, making it ideal for harsh outdoor environments.
Under standard sunlight conditions, the high-efficiency solar panel can fully charge the integrated LiFePO4 battery in approximately 6 hours.
The system supports multiple control modes including PIR motion sensing, microwave sensing, time-based control, and remote control operation.

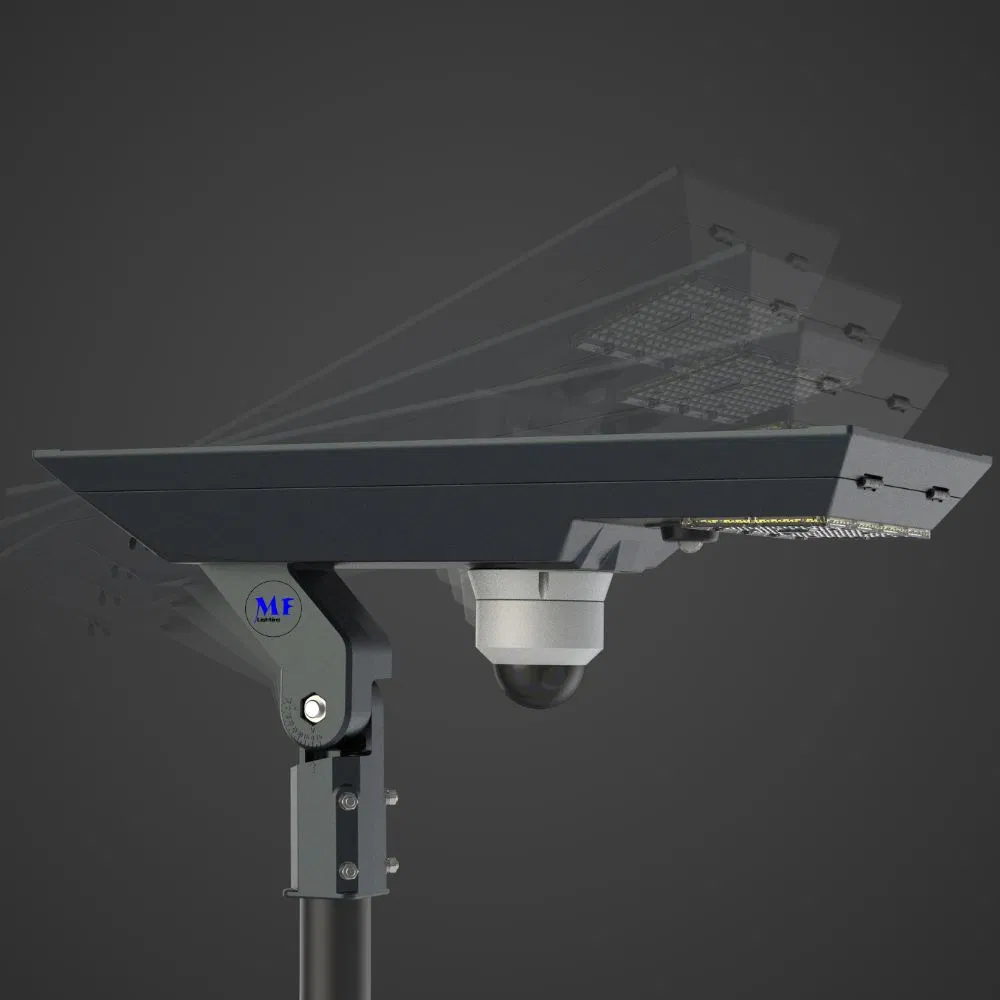

Yes, it offers an optional smart integration feature that supports 2G/4G high-definition cameras for security monitoring purposes.

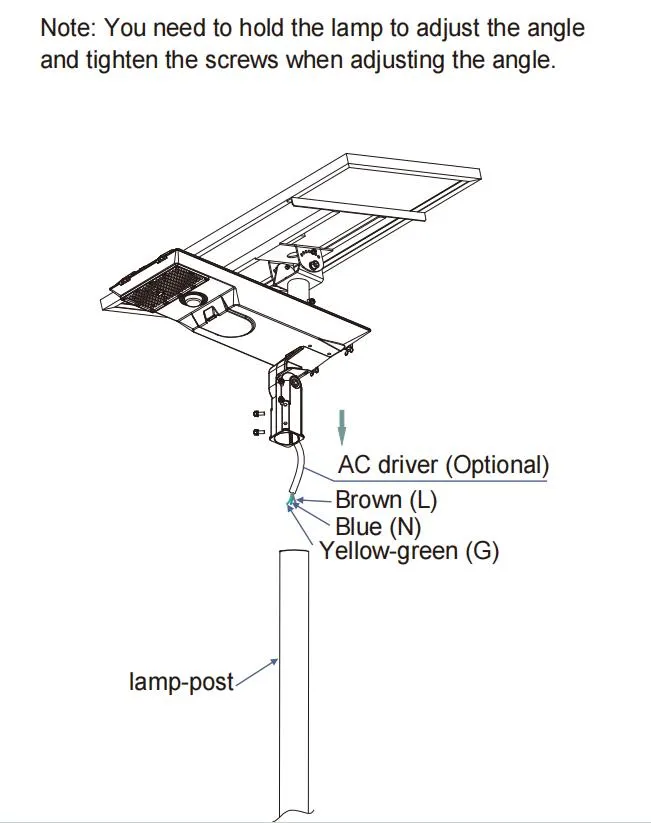

For optimal lighting coverage and performance, we recommend an installation height between 4 to 8 meters, depending on the power wattage chosen.

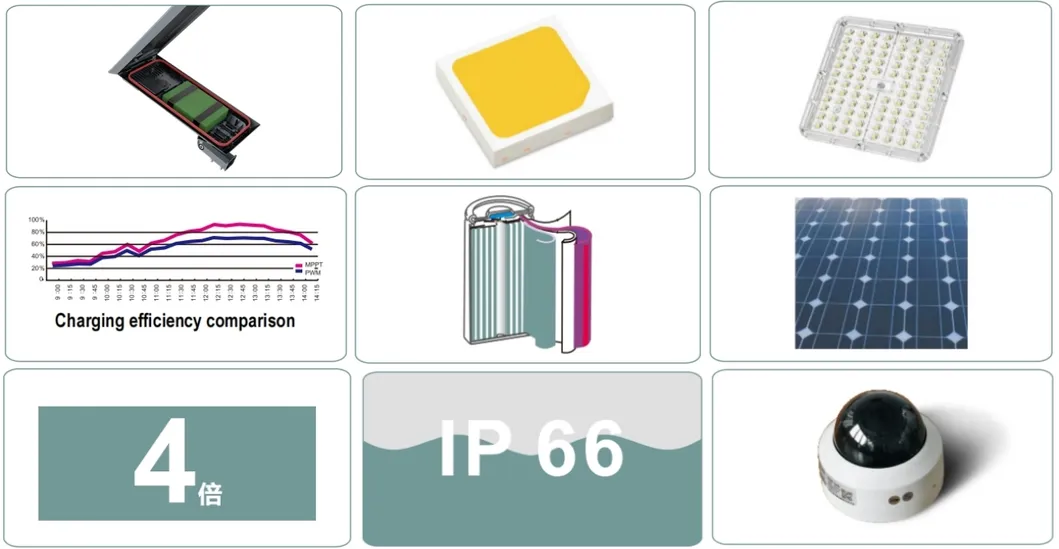

The optional MPPT (Maximum Power Point Tracking) controller improves energy charging efficiency by 15% to 20% compared to standard PWM controllers, maximizing battery life during cloudy days.
