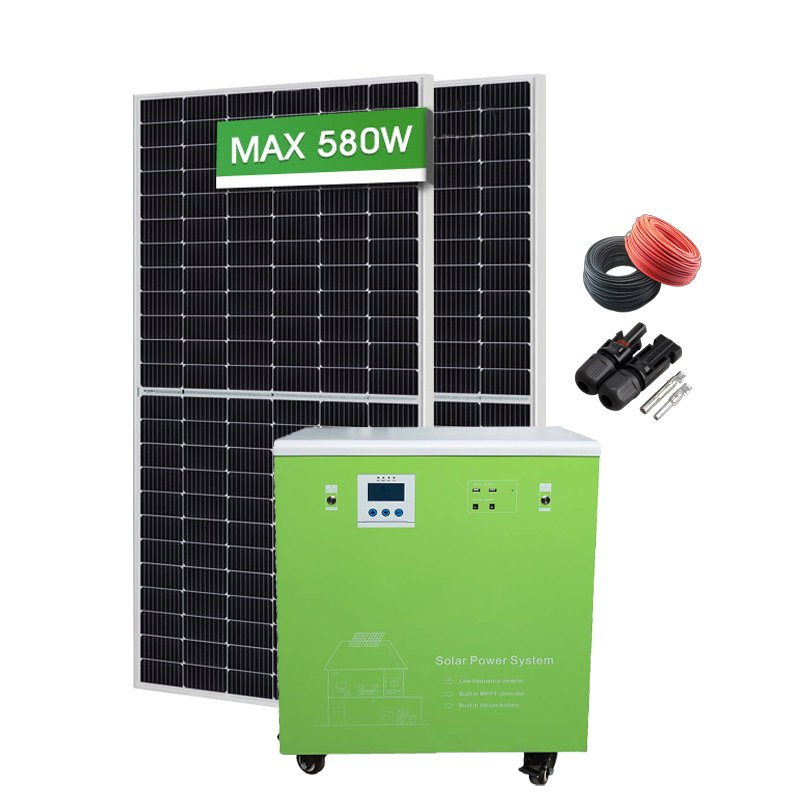

Factory Price Solar Power Generator 1000W Home Outdoor Complete Solar Lighting System 1kw 3kw 6kw Portable Solar Generator

📋

Product Overview & Basic Info

Model NO.	WON-SPS-01	Certification	ISO, CB, CE, RoHS
Rated Power	500W / 1.5KW / 3KW / 6KW	Solar Controller	MPPT Charging Mode
Battery Type	Lead Acid / Lithium / Iron Lithium	Lifespan	Battery: 6 Years / Solar Panel: 25 Years
Efficiency	>85%	Transfer Time	<=4ms
AC Input Range	165VAC-265VAC (45Hz-65Hz)	Temperature	-10℃ to 40℃
Protection	Low Voltage, Over Voltage, Overload	Display	LCD

🔋

Product Description & Features

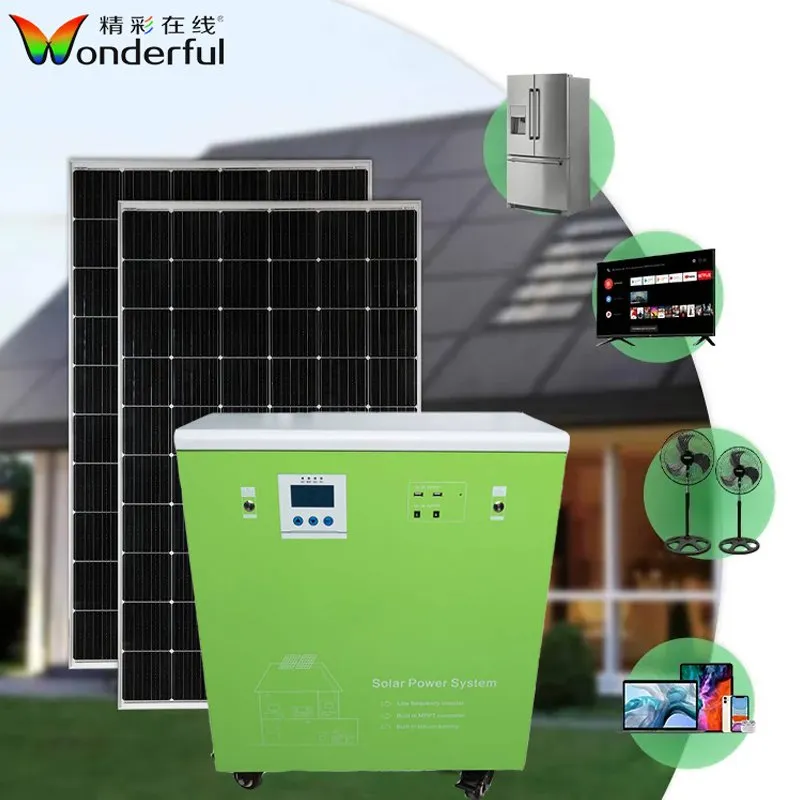

Solar Power Generator - Home & Outdoor Complete Solar Lighting System (1KW / 3KW / 6KW Portable)

✔

All-in-one design: Inverter, controller, and battery all built-in for easy installation.

✔

Pure Sine Wave: Continuous stable output with no loss to load.

✔

Hybrid Mode: Dual charging via solar panels or grid power (2-3 hours charging).

✔

LiFePO4 Battery: High safety standard with a 10-year design lifespan.

✔

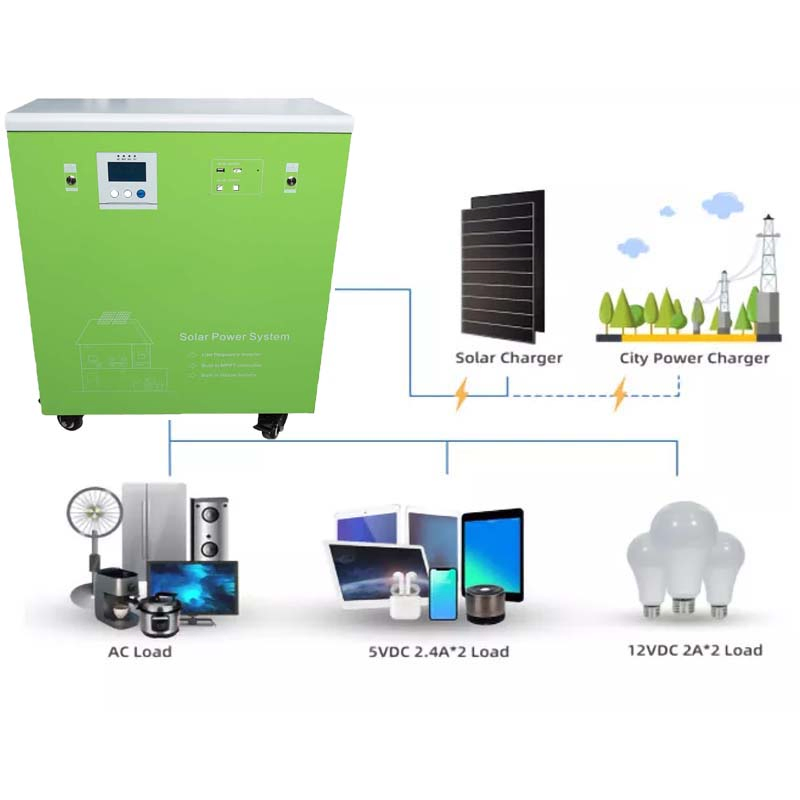

Multiple Outputs: 220V/110V AC, USB DC, and 12V DC ports available.

✔

Multi-protection: Guards against overload, overvoltage, high temperature, and more.

💡

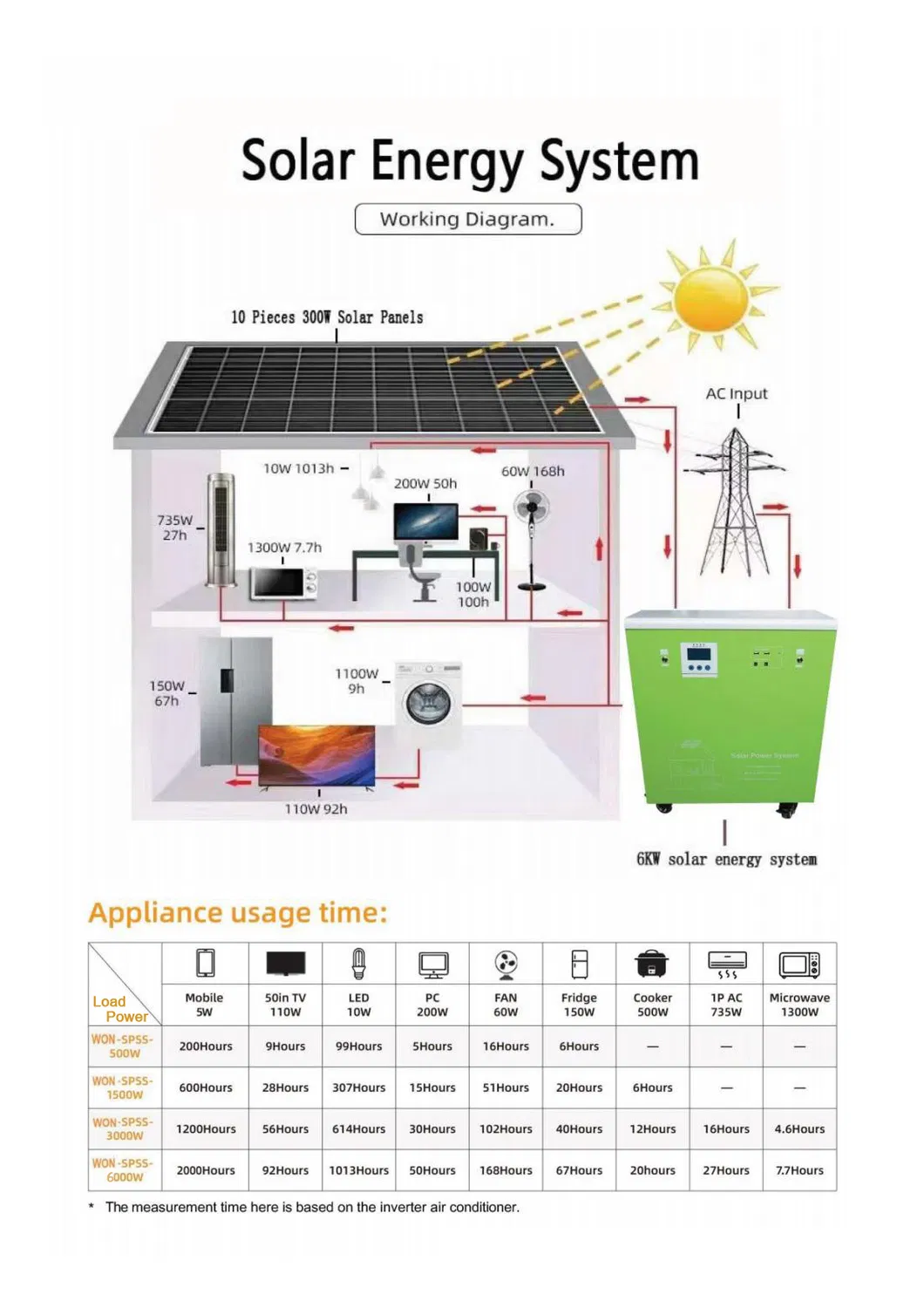

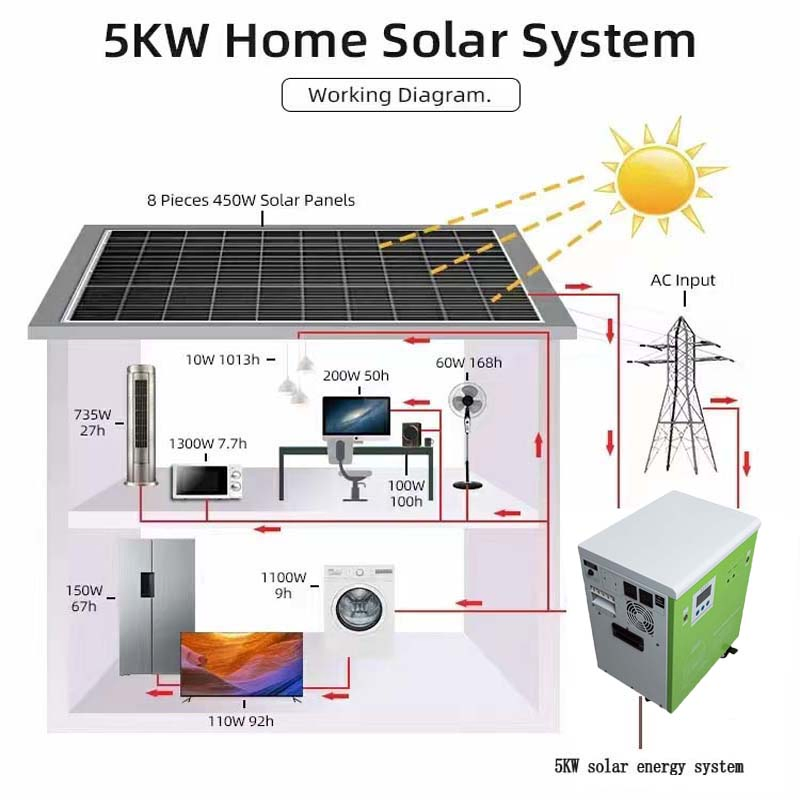

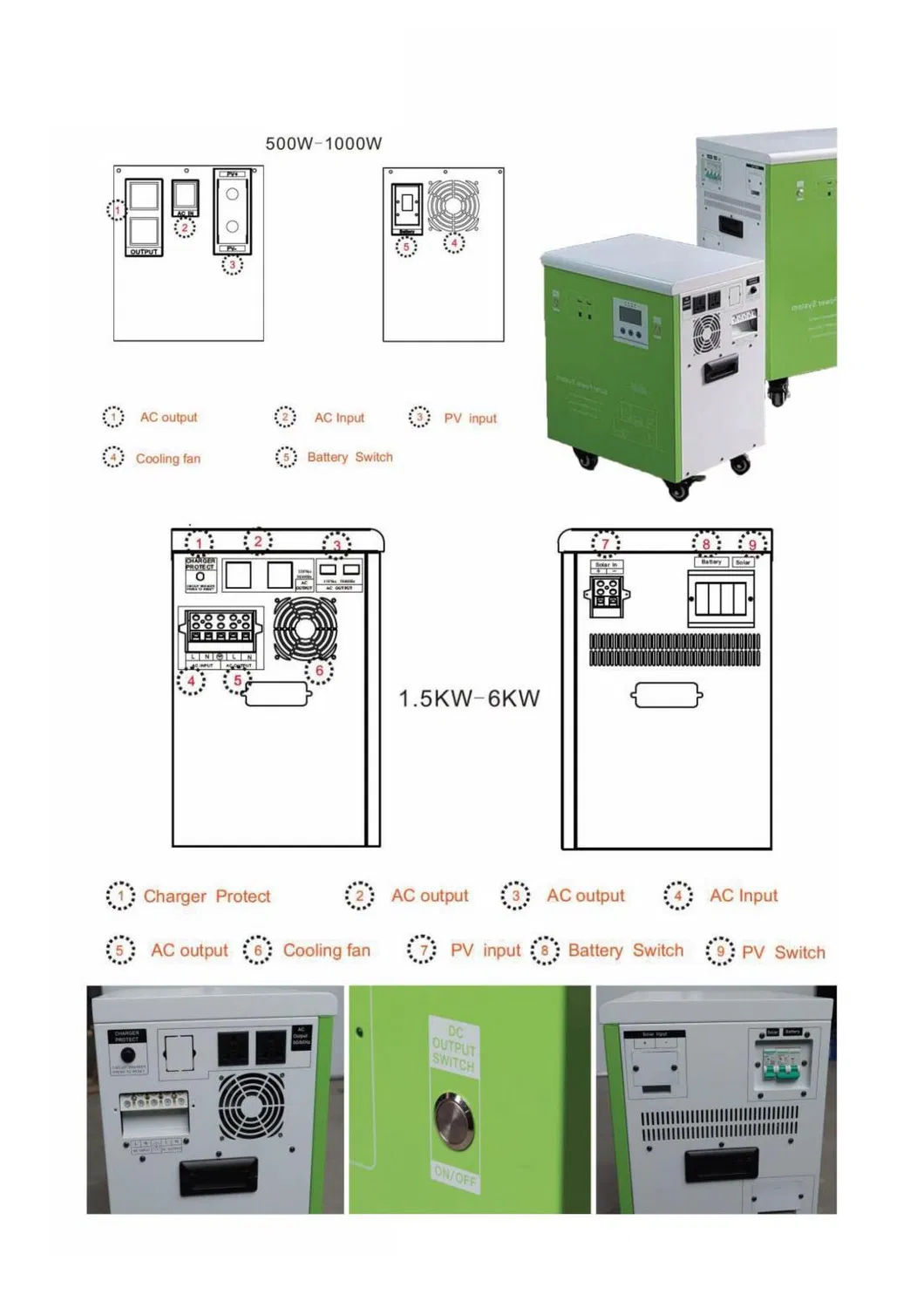

Wiring Diagram & Product Details

📊

Technical Specifications

Parameters	500W System	1500W System	3000W System	6000W System
Solar Panel (Optional)	100W18V*2pcs	250W36V*3pcs	300W36V*4pcs	300W36V*8pcs
Power Generation	~700WH/day	~2600WH/day	~4200WH/day	~8400WH/day
Battery Capacity	640WH	2176WH	4352WH	8704WH
Charging Mode	PWM	MPPT	MPPT	MPPT
Net Weight	22KG	40KG	55KG	98KG

⚙

Main Components

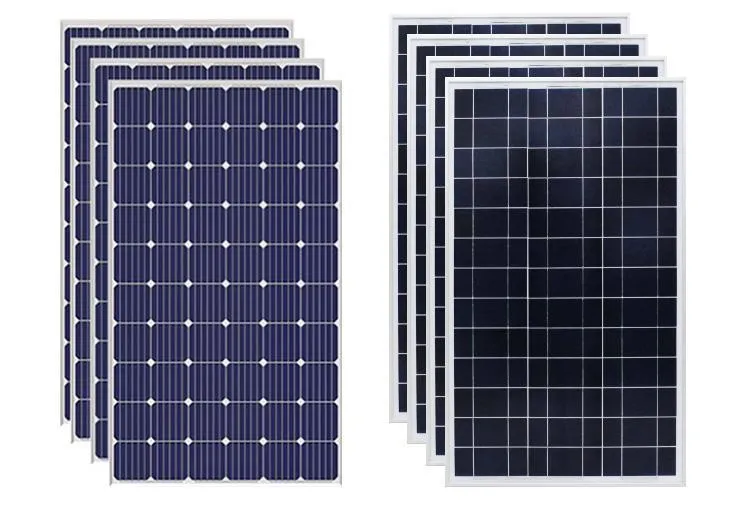

Solar Panels: High efficiency A-Grade mono cells, 21% conversion rate, anti-reflection tempered glass.

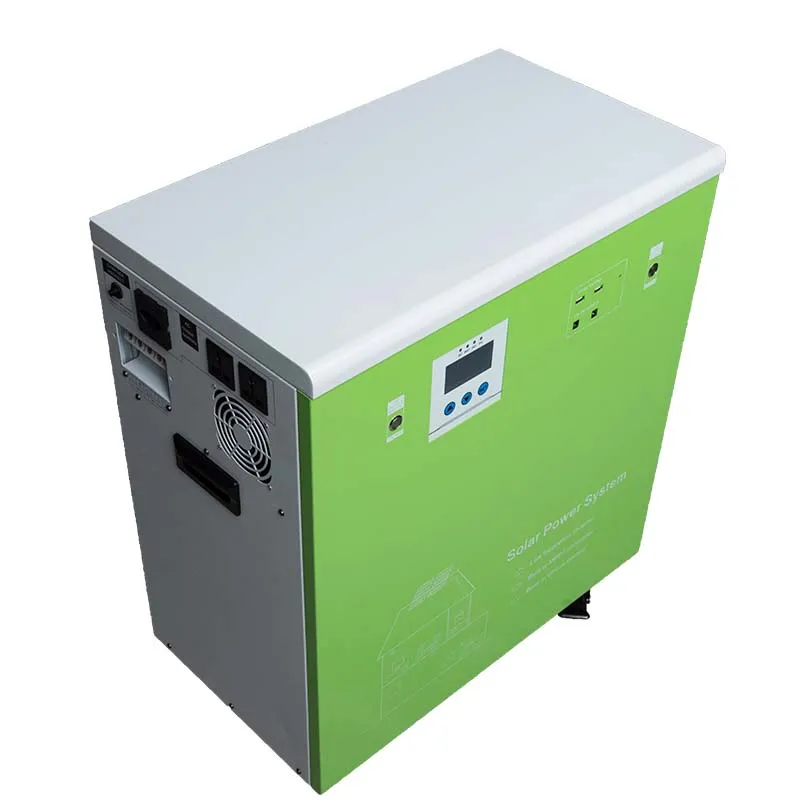

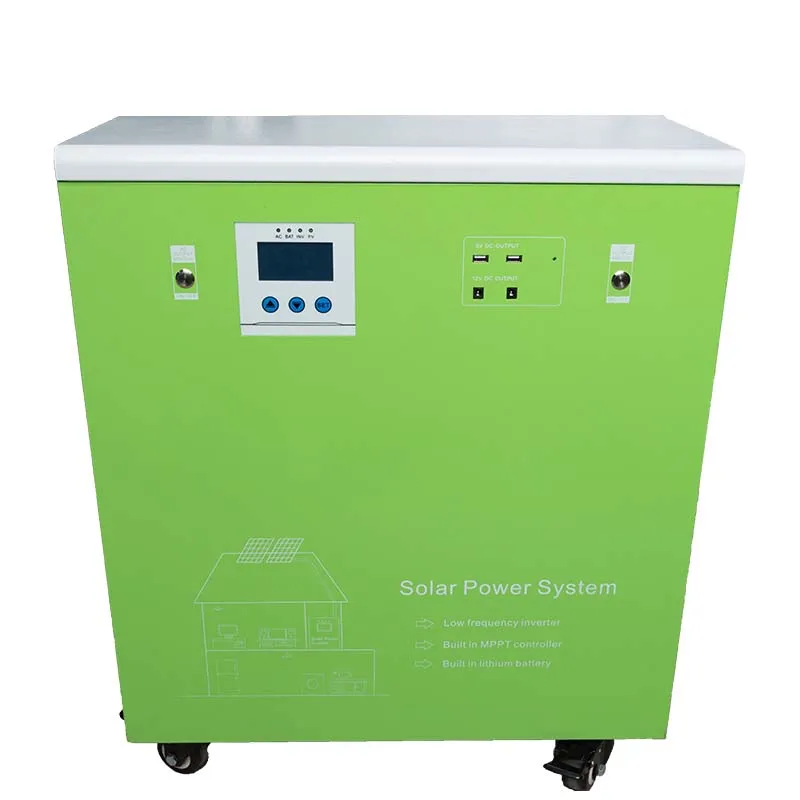

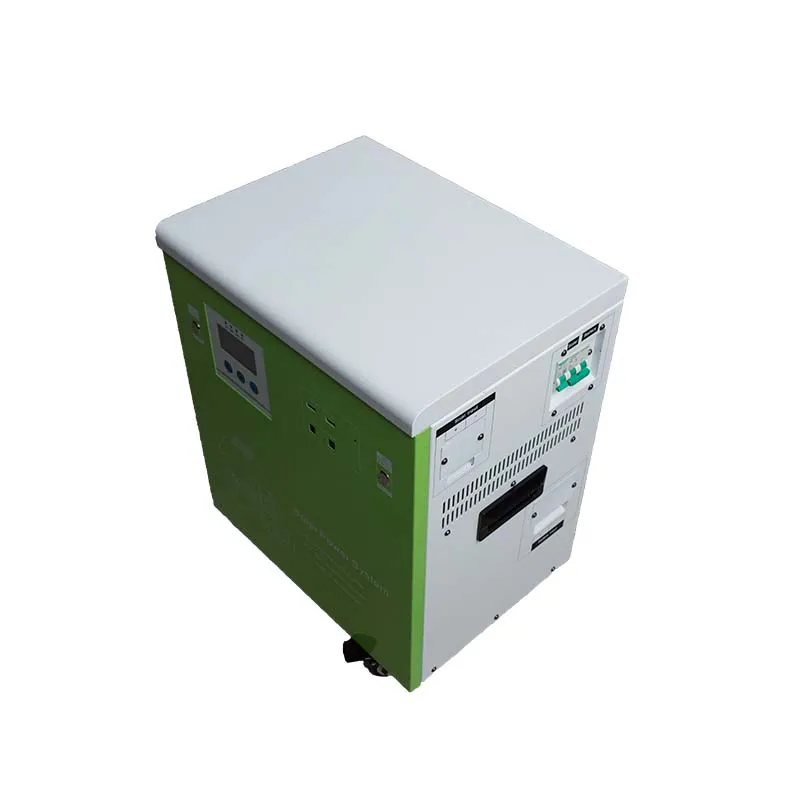

Power Unit: MCU intelligent control, pure sine wave output, and LCD status display.

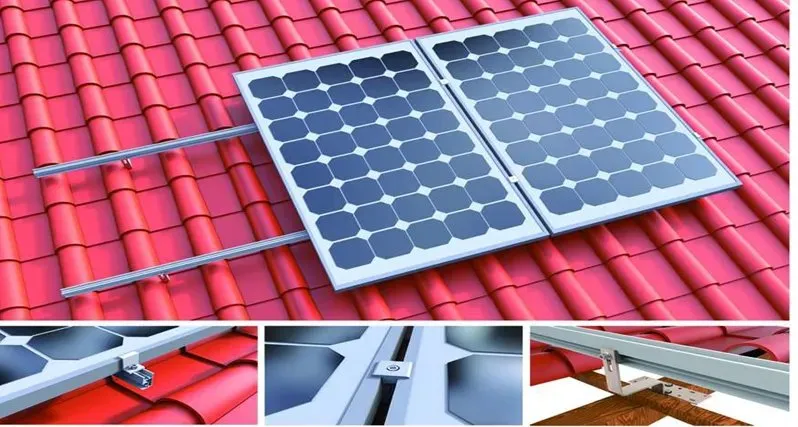

Mounting: High-class anodized aluminum suitable for various roof types and ground installation.

📦

Packing & Shipping

❓

Frequently Asked Questions

What is included in the complete solar system?

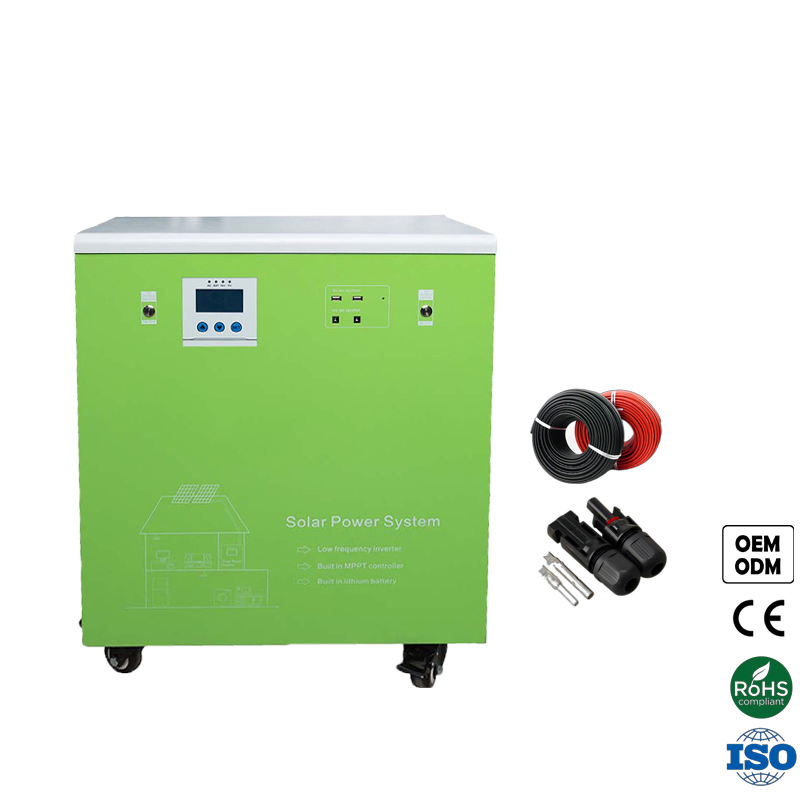

The system typically includes high-efficiency solar panels, an all-in-one generator (with built-in MPPT controller, inverter, and battery), and necessary accessories like 15m photovoltaic cables and 10m AC plugs.

How long do the components last?

The solar panels have a design lifespan of 25 years, while the integrated battery systems (LiFePO4) are designed to last between 6 to 10 years depending on usage.

Can I charge the system without sunlight?

Yes, the system features a hybrid charging mode. It can be charged using the solar panels or via the utility grid (AC input), which takes approximately 2-3 hours for a full charge.

Is the output safe for sensitive electronics?

Absolutely. The system provides a pure sine wave AC output, which is the same quality as grid power, ensuring no damage to sensitive loads like laptops or medical equipment.

What kind of protection does the system offer?

It includes multiple automatic protections: AC output overload, short circuit, overvoltage, low voltage alarm, and high-temperature protection.

What are the available payment and delivery options?

We support various delivery terms including FOB, CFR, CIF, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in multiple currencies like USD, EUR, and CNY.
